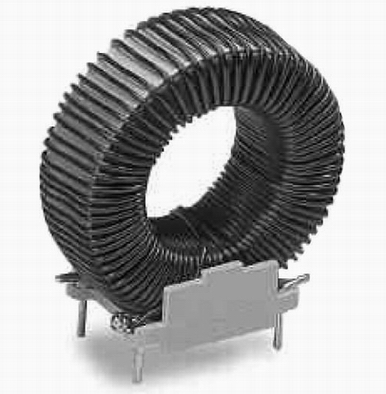

PFC Inductor
PFC Core with Base-A
PFC Core with Base-B
Product ID: #CM467125T53
T-Core PFC With Base
MPP 800uH Inductor
Specifications:
- Inductance(L)
- 800uH±15%-100KHz/1V
- DCR(R)
- 80mΩ(max)-25℃
- Insulation Resistance
- 100MΩ(min) @ DC500V
- Dielectric strength test(Coil to Core)
- AC 500V 60SEC(60Hz-5mA)
Features:
- Selmag differental mode choke standand suitable EMI suppcession for switching power supply
- High Inductance
- Small size
- Minimal external magnetic field
- Designed for any application requiring
- High DC current bias such as output chokes in switching power supplies
- Designed with MPP, High Flux, Sendust/Koolmu
- RoHS compliant
- All insulating ( header ) materials rated for 130`C or higher 200 `C class insulated solid wires are used
- All plastic materials UL94V-0 approved
- Vertical and horizontal Base layout are availialbe fit the mechamical equipment of designer
- Mounted on header/base for easy assembly on PCBs
Order Information:
- Minimum Order: Negotiable
- Branded Product
