5G Absorber

5G Absorber
More Details

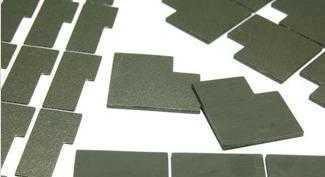

IDCIM series - Double and Wide band tyoe EMI Absorber.

Features：

●IDCM Series us a multi-layered absorber composed of at least two sheets of soft magnetic material.
●In broadband, narrowband and double wide band, reflection reduction is occurred.
●The application frequency range：C(4~8GHz), X(8~12GHz), Ka, K band.
●It is possibile to add thermal conductive property on IDCIM series.


IDCIM Specification Download Now !
See more complete detail
ITEM IDCIM series
Content IDCIM-075 IDCIM-100 IDCIM-150 IDCIM-200 IDCIM-300 IDCIM-400 IDCIM-500
Specification IDCIM Specification
Thickness (mm) 0.75 (±0.05) 1.00 (±0.10) 1.50 (±0.20) 2.00 (±0.20) 3.00 (±0.30) 4.00 (±0.40) 5.00 (±0.50)
Frequency Range 6GHz~20GHz 500MHz~6GHz
Hardness (Shore A) 80 ± 5 (for Standard type)
Service Temp. (°C) -30~150
Standard Size 210mm × 300mm
Flammability Non Flammable
Surface Resistance Ω) Min 1.0×106
Density (g/cm3) 3.6 ± 0.5 (for Standard type)
