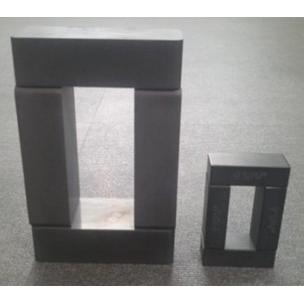

Block Cores

Block Cores Block Cores

CSC´s Block cores are optimized choice for power inductor where large current and low core loss is required at high frequency. Especially block type powdered cores is newly developed to offer a flexible solution to large current applications such as RPG ; Solar Cell, Wind Energy, Fuel Cell.
The higher switching frequency at 3 phase line reactor leads to undesirable audible noise and heat rising when using Fe-Sistrip cores. CSC’spowder cores offer a best solution to audible noise problem and heat rising, which Fe-Sistrip cores seriously have. Futhermoremorphologically uinqueshapes make it possible to meet any large specifications.


design tool Download Now !
