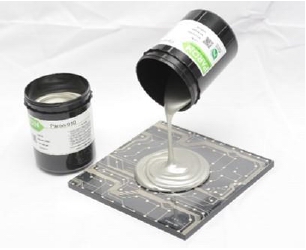

This conductive paste is
Designed as a screen printing conductive paste for flexible printed

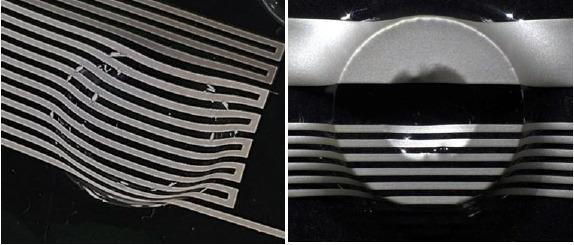

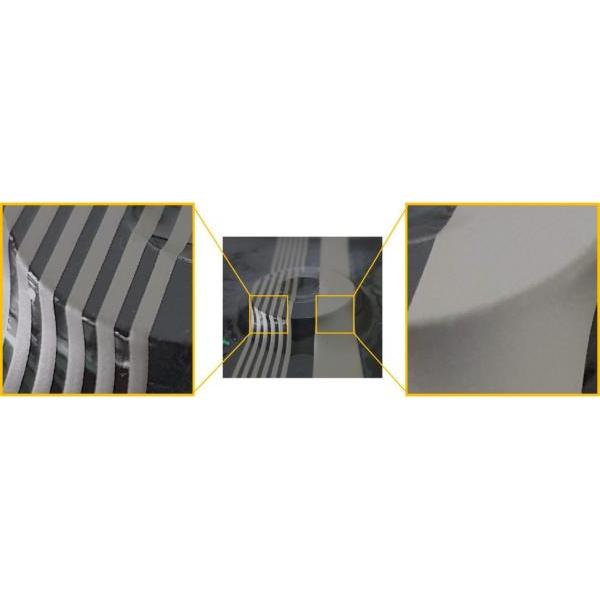

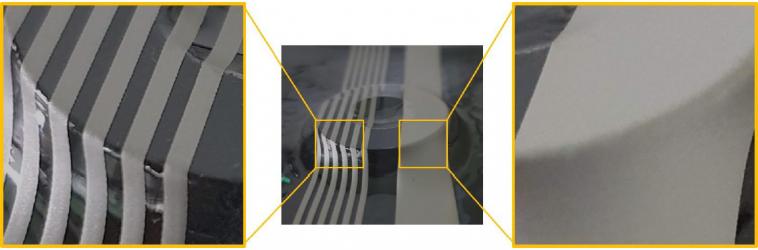

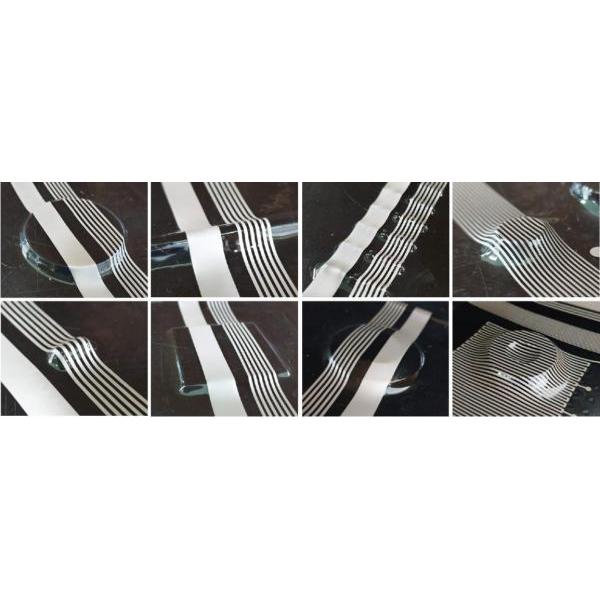

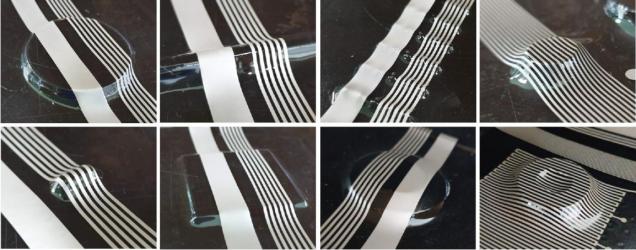

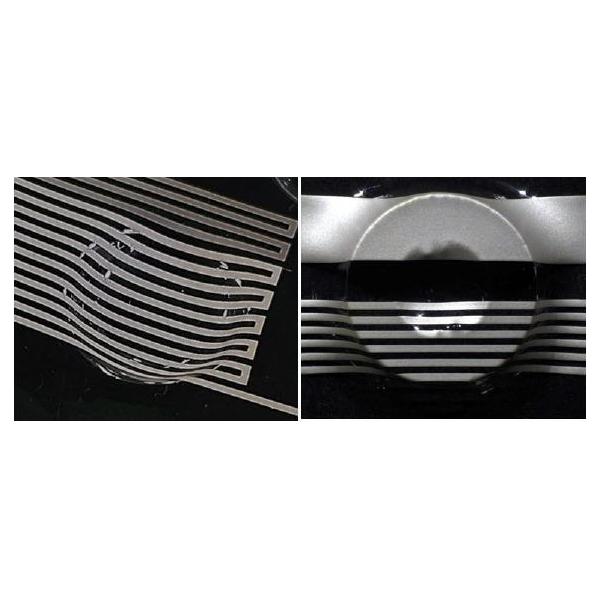

Designed as withstand the intense stretching and heat of the thermoforming.
Item |
Unit |
Paron-970 |
|
Paste properties |
Solid Content |
wt% |
60 ± 5 |
Viscosity* |
cps |
15,000 ± 3,000 |
|
FOG |
㎛ |
≤ 5.0 |
|
Specific Gravity |
g/cc |
2.5±0.3 |
|
Physical Properties |
Surface resistivity ** |
mΩ/□ |
≤ 100 |
Resistivity after Thermoforming |
mΩ/□ |
≤ 100 |
|
Pencil Hardness |
H |
≥ H |
|
Cross-hatch cut |
B |
5 |
