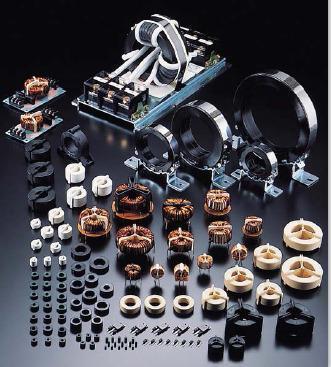

Nanocrystalline Core

Nanocrystalline Core
More Details

Product ID: Nanocrystalline Core
Specifications:
Part No. VAC No. DIMENSIONS Ae (㎝²) Le (㎝) Weight (g) Permeability (μ) AL （μH）
Nominal Dimensions
(mm*mm*mm)		 Finished Dimensions
(mm*mm*mm)		 10KHz 100KHz 10KHz 100KHz
S620-C12 W620 16*12.5*6 17.8*10.7*8 0.08 4.5 2.6 50000≦u≦96700 16000≦u≦30900 15 4.8
S867-C12 W867 22*17*6 24.0*15.2*8.0 0.12 6.1 5.4 50000≦u≦96700 ≥13000 16.4 4.3
S622-C12 W622 25*20*10 27.3*17.5*12.3 0.19 7.1 9.9 50000≦u≦96700 16000≦u≦30900 22.5 7.2
S676-C12 W676 30*25*15 32.3*22.7*17.5 0.27 8.6 17.4 50000≦u≦96700 16000≦u≦30900 26.5 8.5
S911-C12 W911 30*20*10 32.5*17.8*12.5 0.4 7.9 23.1 65600≦u≦127000 15680≦u≦30300 56 13.4
S624-C12 W624 40*32*15 42.3*29.1*17.8 0.44 11.3 36 50000≦u≦96700 16000≦u≦30900 32.5 10.3
S626-C12 W626 50*40*20 52.3*37.1*22.8 0.73 14.1 76 50000≦u≦96700 16000≦u≦30900 43 13.8
S567-C12 W567 130*100*25 134.5*95.0*28.5 2.85 36.1 757 37500≦u≦72500 13640≦u≦27300 50 19.4
SV105-C12 V105 194*155*25 200*149*28.5 3.71 54.8 1490 40000≦u≦77300 13000≦u≦26000 45.3 14.7
S914-W12 W914 9.8*6.5*4.5 11.2*5.1*5.8 0.06 2.6 1.1 65600≦u≦127000 16500≦u≦31900 25.5 6.4
S902-W12 W902 12*8*4.5 14.1*6.6*6.3 0.07 3.1 1.7 72000≦u≦139000 16470≦u≦32900 28 6.8
W498-W12 W498 12.5*10*5 14.3*8.5*7.0 0.05 3.5 1.3 42200≦u≦81500 15000≦u≦30000 10 3.6
S865-W12 W865 15*10*4.5 17.1*7.9*6.5 0.09 3.9 2.6 72000≦u≦139000 17800≦u≦34500 27 6.7
S403-W12 W403 16*10*6 17.9*8.1*8.1 0.14 4.1 4 72000≦u≦135000 16470≦u≦32900 43 10.1
S515-W12 W515 17.5*12.6*6 19.0*11.0*8.0 0.12 4.7 4.1 72000≦u≦135000 16470≦u≦32900 30 6.9
S838-W12 W838 19*15*10 21.2*13.0*12.3 0.16 5.3 6.3 72000≦u≦130000 16470≦u≦33600 36.1 8.8
S989-W12 W989 20*12.5*8 22.6*10.3*10.2 0.24 5.1 9 72000≦u≦135000 17800≦u≦34500 55.2 13.6
S523-W12 W523 25*20*10 27.6*17.4*12.8 0.2 7.1 10.4 60000≦u≦116000 15500≦u≦31000 28.4 7.3
S380-W12 W380 25*16*10 27.9*13.6*12.5 0.36 6.4 17 72000≦u≦135000 16470≦u≦32900 65.5 15.5
S423-W12 W423 30*20*10 32.8*17.6*12.5 0.4 7.9 23 72000≦u≦135000 16470≦u≦32900 59.3 14
S514-B12 W514 30*20*15 32.8*17.5*17.8 0.57 7.9 33 72000≦u≦135000 16470≦u≦33600 88 20
S422-W12 W422 40*32*15 43.1*28.7*18.5 0.46 11.3 38 72000≦u≦135000 16470≦u≦33600 47.2 11.1
S424-B12 W424 　 　 　 　 64 72000≦u≦135000 16470≦u≦33600 101 23.1
WV102-B12 V102 45*30*15 48.3*26.4*18.2 0.86 11.8 74 72000≦u≦135000 16470≦u≦32940 87.5 20.3
S516-W12 W516 50*40*20 53.5*36.3*23.4 0.76 14.1 79 50000≦u≦97000 15000≦u≦30000 45.3 14
S517-B12 W517 63*50*25 67.3*46.5*28.6 1.24 17.8 161 50000≦u≦97000 15000≦u≦30000 58.6 18.1
SV140-B12 V140 80*50*20 86.0*44.7*25.7 2.28 20.4 342 71250≦u≦137000 15000≦u≦30000 94 28
S518-B12 W518 90*60*20 95.4*54.7*24.7 2.28 23.6 395 50000≦u≦97000 15500≦u≦31000 81 25.1
SV082-W12 V082 100*80*25 105.5*75.0*29.6 1.9 28.3 379 50000≦u≦97000 15000≦u≦30000 56.3 16.9
S468-B12 W468 102*76*25 108.1*70.0*30.3 2.47 28 508 50000≦u≦97000 15000≦u≦30000 68.8 21.6
S409-W12 W409 20*12.5*8 22.6*10.3*10.2 0.24 5.1 9 72000≦u≦135000 16470≦u≦33600 57 14.3
S434-03-W12 W434-03 50*40*20 53.5*36.3*23.4 0.76 14.1 76 72000≦u≦135000 16470≦u≦33600 53 19
※其他規格型號可以訂製
