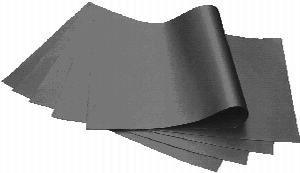

Electromagnetic Film & Sheet, RF-ID Signal Improvement Sheet
Product ID: CSC- EMI Absorber
Chang Sung Corporation (CSC) has been a leading supplier of Metal Powers and Magnetic Power Cores in the world market. The new CNS and CNF series developed based on accumulated technologies of magnetic materials can eliminate noises effectively. You can solve EMC / EMI problems by attaching CNS and CNF materials simply on the parts of noise sources.
*Features:
Ć Excellent suppression effect of radiation noise from 10MHz to 5 GHz band.
Ć High electrical resistance ( 106 to 107 ).
Ć Flexible and easy to handle.
Ć Can be manufactured in many shapes, sizes and thickness ( 0.025mm to 2mm )
*Application: Noise suppression on Mobile Phone, Digital Camera, Computer, PDP, DVD, Camcorder, Wireless Lan, Military..
Features:
- CNS Series---CNS-L, CNS-M, CNS-H
- *Standard thickness: 0.2mm, 0.3mm, 0.5mm, 1.0mm
- *Standard size: 150mm, 210mm, 300mm
- *Temperature range: -25¢J~85¢J
- *Surface resistance: 5*106 (min)
- *Thermal conductivity: 0.3W/m. K
- *Tensile strength: 6.0 MPa (typ.)
- CNF Series---CNF-L, CNF-H
- *Standard thickness: 0.025mm, 0.050mm, 0.075mm, 0.1mm
- *Standard size: 150mm, 210mm, 300mm
- *Temperature range: -25¢J~85¢J
- *Surface resistance: 5*106 (min)
- *Tensile strength: 6.0 MPa (typ.)
- CRF Series- Flexible sheet type for RF-ID
- *Standard thickness: 0.10mm, 0.20mm, 0.25mm, 0.30mm, 0.50mm
- *Standard size: 150mm, 210mm, 300mm
- *Temperature range: -25¢J~85¢J
- *Applicable frequency: 100KHz~5GHz
- Surface resistance: 5*106 (min)
- *Tensile strength: 6.0 MPa (typ.)
